Rod Ends

Rod ends, consist of a spherical ball enclosed within a housing, and typically have a threaded shank or stem on one end, allowing them to be attached to a mating component such as a rod, linkage, or control arm.

This construction provides flexibility and allows for angular misalignment and rotational movement.

We offer a number of Rod Ends in male and female configurations to mate with our sensors. The naming convention typically looks like RE-1220-M. The 1220 refers to 1/2-20 thread size. The M refers to a Male shank and F refers to a female threaded hole. If the M or F at the end is missing then, assume it's male. If the SKU looks like RE-M12-F then, the M in the thread refers to metric threads.

RE-11212-M

RE-11212-M

RE-1032-F

RE-1032-F

RE-1220-M

RE-1220-M

RE-1428-M

RE-1428-M

RE-1428-F

RE-1428-F

RE-3416-M

RE-3416-M

RE-11412-M

RE-11412-M

RE-7814-M

RE-7814-M

RE-M3-M

RE-M3-M

RE-M3-F

RE-M3-F

RE-M5-F

RE-M5-F

RE-M6-F

RE-M6-F

RE-M10-F

RE-M10-F

RE-11212-M Rod Ends

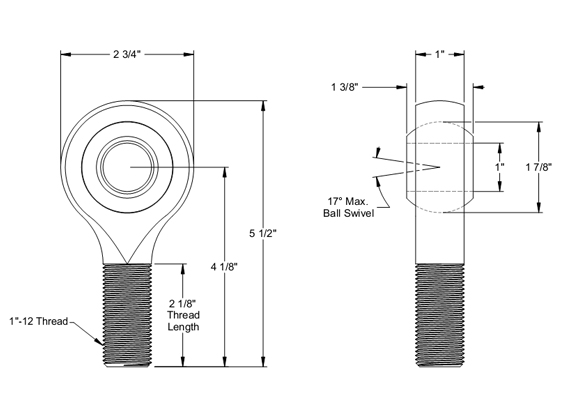

RE-112-M Rod End

RE-112-M Rod End

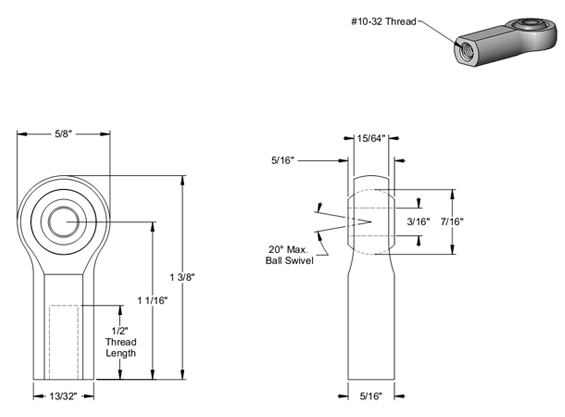

RE-1032-F Rod End

RE-1032-F Rod End

RE-1032-F Rod End

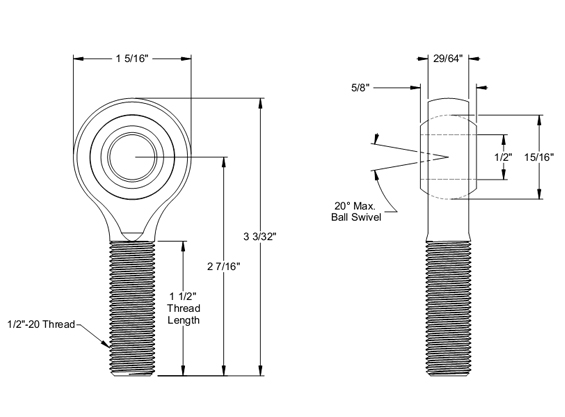

RE-1220-M Rod Ends

RE-1220-M Rod End

RE-1220-M Rod End

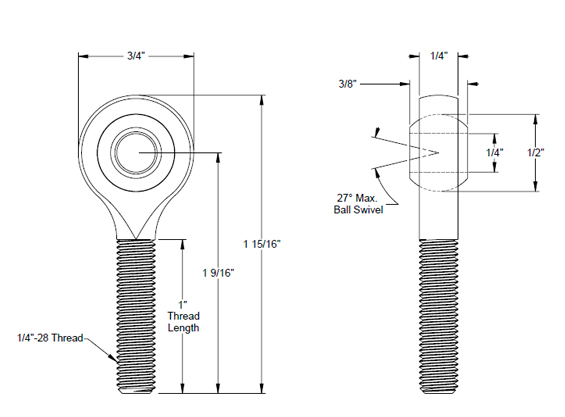

RE-1428-M Rod Ends

RE-1428-M Rod End

RE-1428-M Rod End

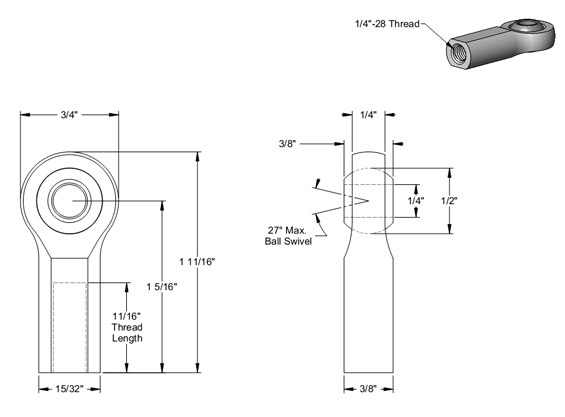

RE-1428-F Rod Ends

RE-1428-F Rod End

RE-1428-F Rod End

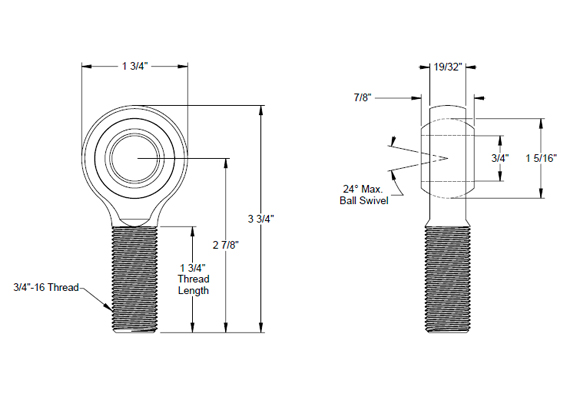

RE-3416-M Rod Ends

RE-3416-M Rod End

RE-3416-M Rod End

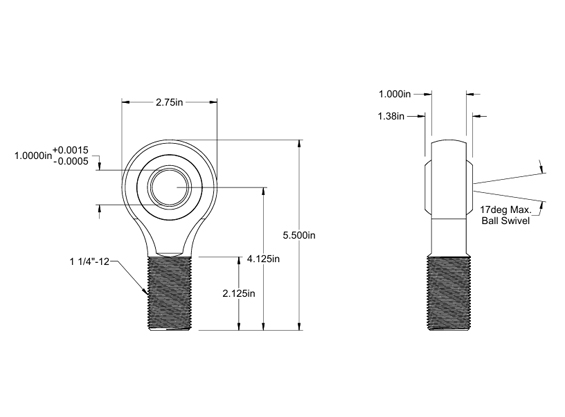

RE-11412-M Rod Ends

RE-3416-M Rod End

RE-11412-M Rod End

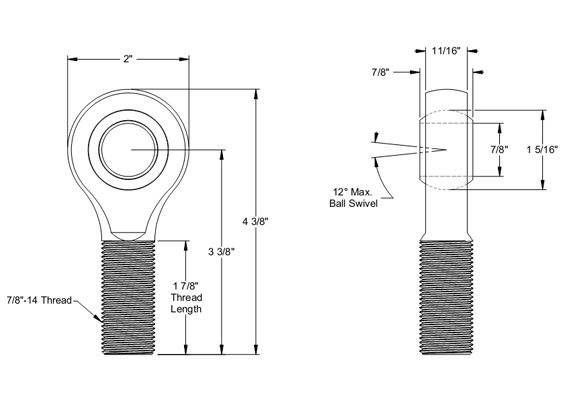

RE-7814-M Rod Ends

RE-7814-M Rod End

RE-7814-M Rod End

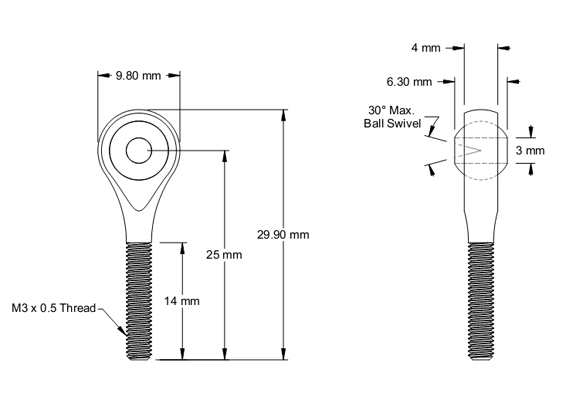

M3-M Rod Ends

M3-M Rod End

M3-M Rod End

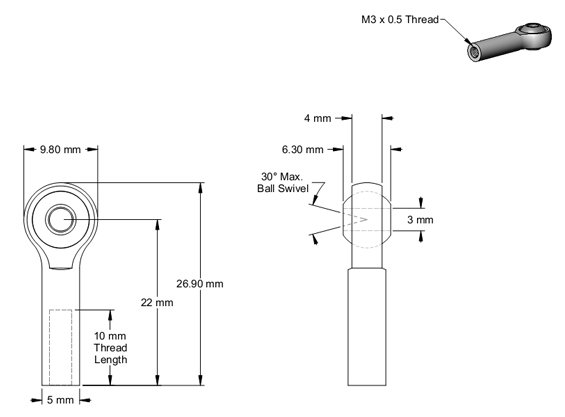

M3-F Rod End

M3-F Rod End

M3-F Rod End

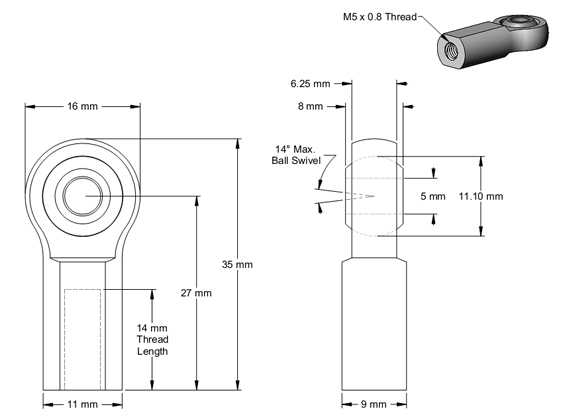

M5-F Rod End

M5-F Rod End

M5-F Rod End

M6-F Rod End

M6-F Rod End

M6-F Rod End

M10-F Rod End

M10-F Rod End

M10-F Rod End
