SensorVUE Software

SensorVUE Software (SV-1000)

Multi Channel, Multi Sensor Software to Display, Log and Plot  Sensor Data

on a Windows PC or Tablet

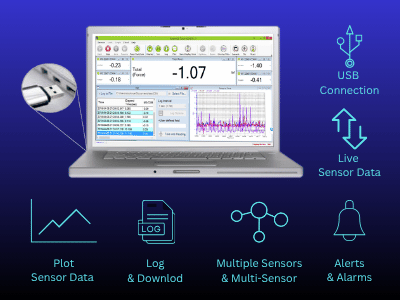

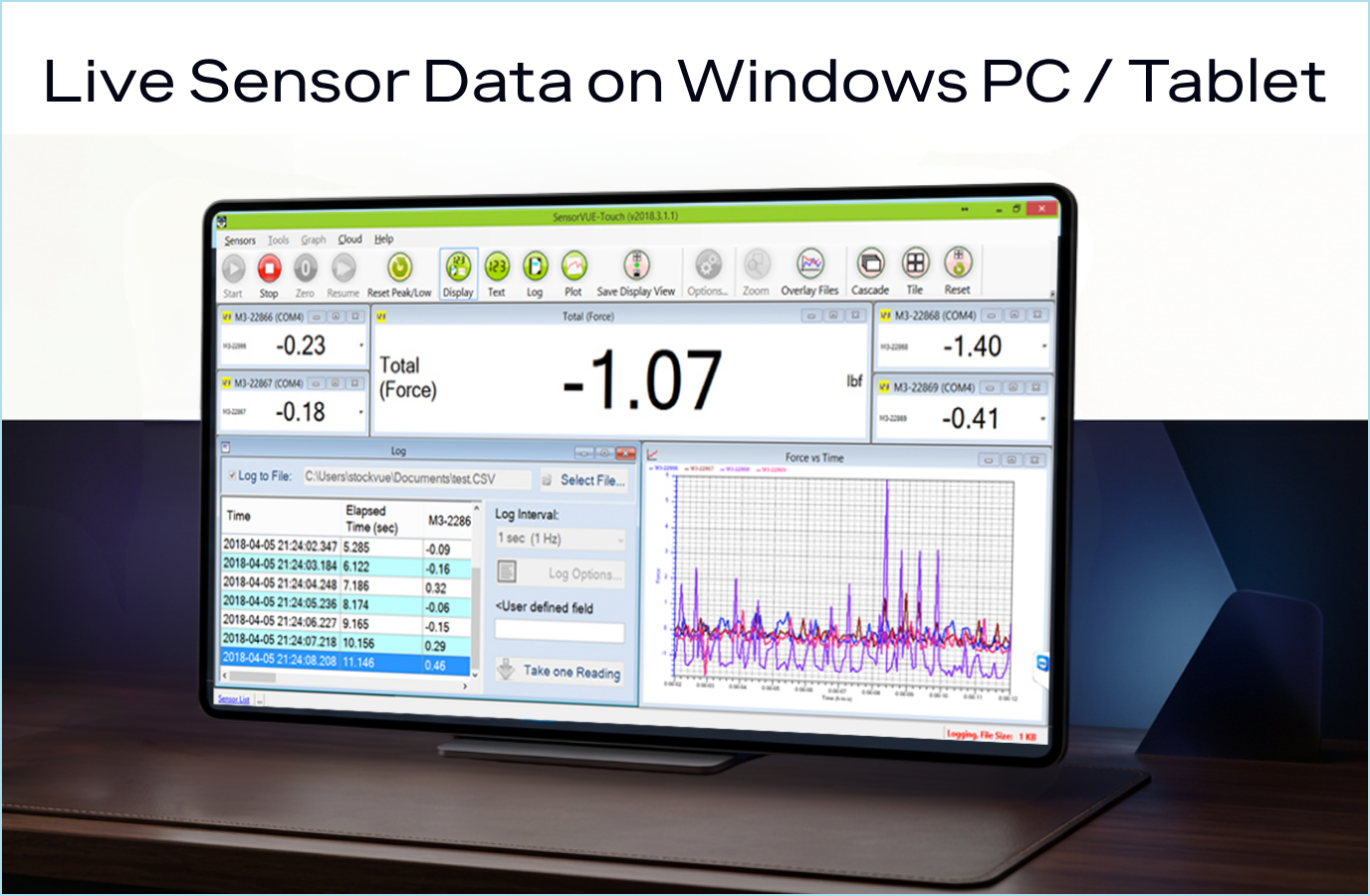

SensorVUE Software



Our flagship software works with any of our digital sensors - force/weight, torque, pressure, level and impact force measurement up to 1 KHz data capture rate. We highly recommend that you purchase this software, even if you plan to write your own software.




Features



The LoadVUE Lite free software only shows you load/force/weight values as a text display for one sensor only. The LV-1000 LoadVUE Pro Software to access all the features outlined above but only for load/force/weight measurement for one sensor only. SensorVUE is the software that allows to you work with any type of sensor we offer as well as any number of sensors your PC/Tablet can support.

  • Multiple Channels - Force/Load/Weight/Pressure/Torque/Level
  • Peak/Low Value
  • Remote Support
  • Recalibration Utility
  • Support for data rates up to 1000 Hz
  • Select Units
  • Touch screen & Tablet friendly
  • Compatible with recent versions of Windows 8/10
  • Arrange Windows to any size location on screen
  • Generate Derived values (formula sensors)

Plotting Data

Raw sensor readings as well as Peak and Low values can be plotted as a X-Y (Force vs. Time) plot. Additional l data such as derived values (Formula sensors) as well as averaged and /or median readings can also be plotted to remove unwanted sensor noise, damp vibrations etc.

loadvue plot

LoadVue Pro Logging

Logging Data

Data can be logged to Excel compatible CSV files. Depending on the sensor, data logging at different rates can be captured from a drop down list up to a maximum of 1000 Hz.



Select Units

Sensor Data can be read in many applicable units, for example:

  • Pounds, Newton, Kilogram, Grams for force/weight sensors
  • Inches, millimeters for displacement sensors
LoadVUE Pro General Options
Load Vue Pro Formula Sensors

Formula Sensors to Generate Derivative Values

Combine one or more sensors to create a virtual sensor. Simple formulas (using the 4 basic operations: + - * / ) can be used to create a virtual sensor. For example if you are using a force sensor and know the area under the force, you can plot the stress by creating a formula Force/Area. You can then log, plot, set alarms on, etc these virtual sensors just as you would a real sensor. You can even combine formula sensors to create a new formula sensor.

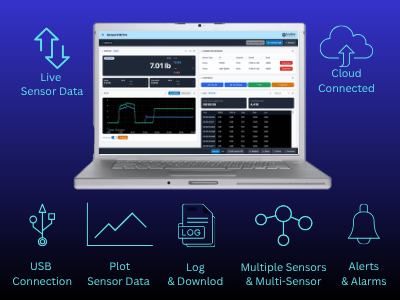

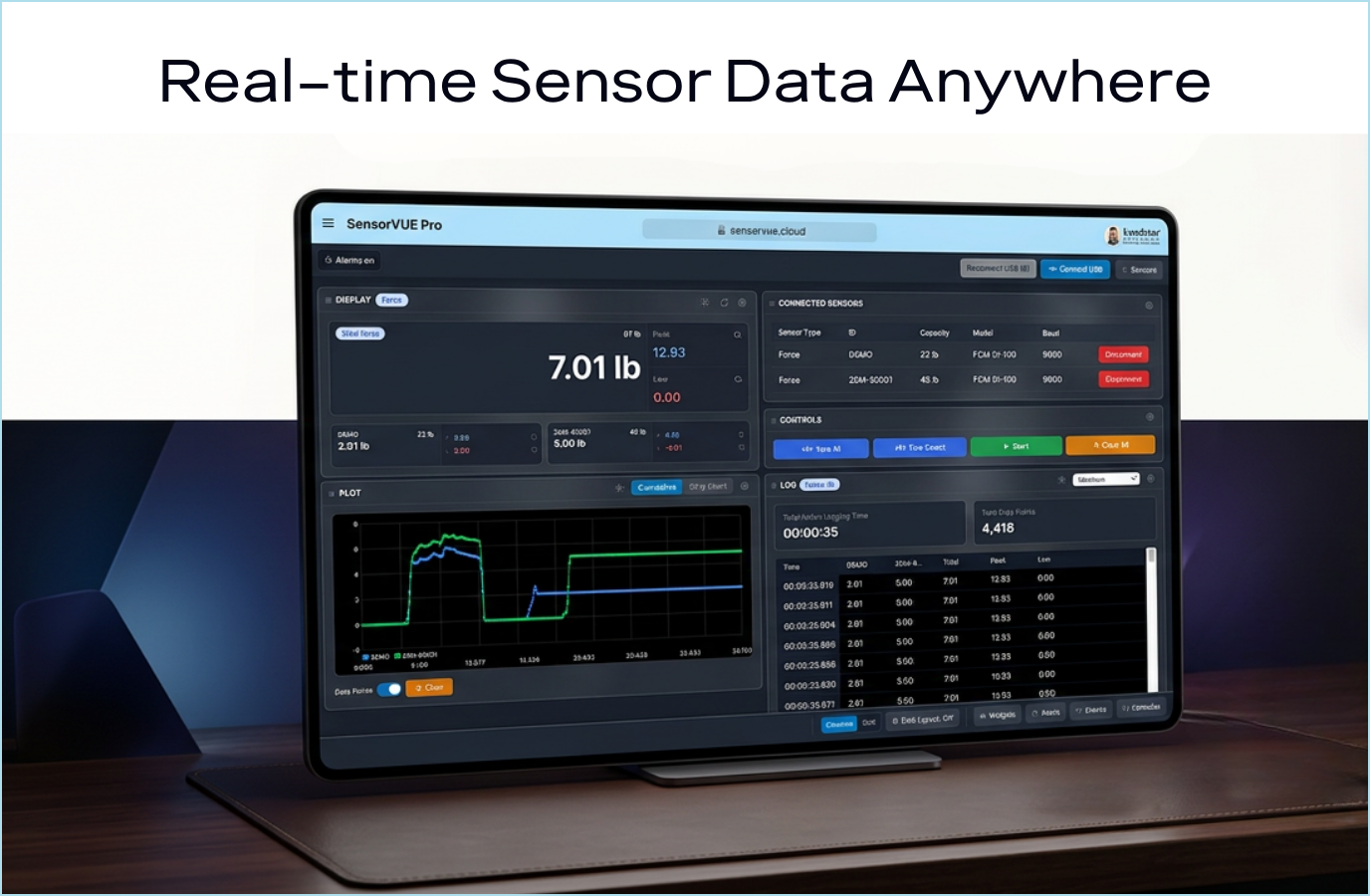

Log Data to Cloud

Data can be logged to SensorVUE Cloud and can be retrieved later for post-processing. You can see all your logged files and download them from the Cloud.

LoadVUE Pro Log to Plot
LoadVUE Pro Filters

Average and Median Filters

These filters can be applied to sensors to filter out unwanted noise and vibrations from the raw readings.

Alarms

Audio alarms can configured to trigger when specific conditions are met, for example, when load exceeds a specified limit. Emails and/or text messages can be sent when audio alarms are triggered.

You can use this feature during manufacturing operations for e.g. to let a technician know when a certain force threshold has been met.

LoadVUE Pro Alarms



Upgrade to ControlVUE

Upgrade to ControlVUE software to turn external devices such as motors, lamps, sirens, pumps etc on/off based on sensor values using USB relays.



ControlVUE Software





Up to 8 External Devices can be controlled using 1, 2 or 8 Channel USB Relays






Product Comparison

  LV-100 LV-1000 LV-4000 CG LV-1000HS-10K SensorVUE ControlVUE
Supported Sensors Force (Weight) Force (Weight) Force (Weight) Force (Weight) Force (Weight)
Torque
Pressure
Level
Displacement
Temperature
Acceleration
Angle
Force (Weight)
Torque
Pressure
Level
Displacement
Temperature
Acceleration
Angle
No. of Sensors 1 1 4 1 Limited by USB Ports Only Limited by USB Ports Only
Log Readings to .CSV File
Plot Readings
Change Units
Display Peak/Low Values
E-Mail/SMS/Audible Alerts
(individual & total)

(individual & total)
Secondary Axis Plots
Non-Time Axis Plots
(eg. Force vs. Displacement)
Resize, Move, Place Elements on Screen and Save Configuration
View X-Y Plot Live In Real-Time
Zoom into graphs
Overlay graphs from multiple runs
Max Data Rate Supported
(Readings/sec)
10 1000 100 Up to 50KHz 1000 1000
Log/Plot Derived Values
(eg. Stress from Force and Area, Strain from Force and Displacement)
Control Relays
(1, 2 and 8 channel versions available)







Product Details
C-Compression, T-Tension, U-Universal
SKUChannelsMax. Data RateCompatible DevicesPriceQuantity
SV-1000Unlimited1 KHzAll Loadstar ProductsPlease login to see price
N/A
