Load Buttons

Load Buttons for Compression Forces are suitable for use with compression mounting assemblies, canisters, S-beams, single-ended beams, as well as the iLoad Pro & iLoad TR.

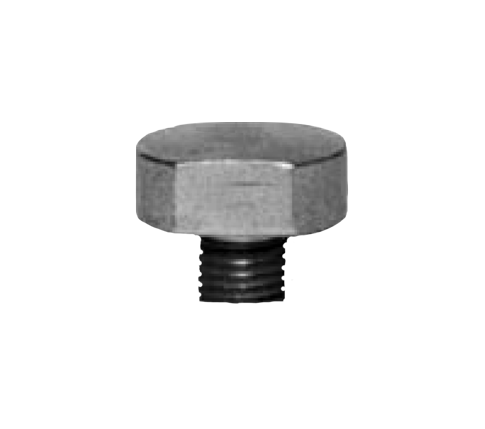

LB-1220
LB-1220

Suitable for use with compression mounting assemblies, canisters, S-beams, single-ended beams, as well as the iLoad Pro & iLoad TR

Explore
LB-7814
LB-7814

Suitable for use with compression mounting assemblies, canisters, S-beams, single-ended beams and the iLoad Pro

Explore
LB-3416
LB-3416

Suitable for use with RAS1 5k lb. & 10K lb.

Explore

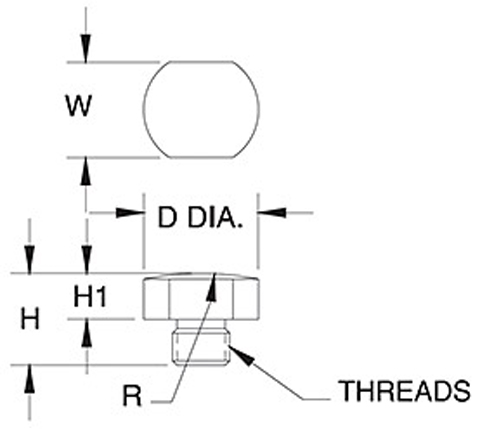

LB-1220 Load Buttons

LB-1220 Load Button
  • Thread Size: 1/2-20 UNF
  • D: 0.75 in.
  • H: 0.70 in.
  • H1: 0.30 in.
  • R: 4.00 in.
  • W: 0.63 in.

LB-7814 Load Buttons

LB-1220 Load Button
  • A Thread Size: 7/8-14 UNF
  • B: 0.70 in.
  • C: 1.50 in.
  • D: 1.38 in.
  • E: 1.00 in.
  • F Radius: 15

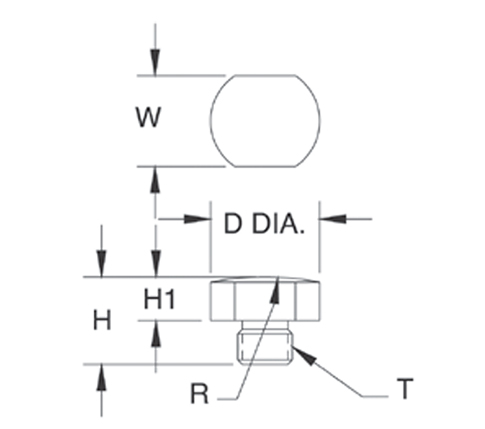

LB-3416 Load Buttons

LB-1220 Load Button
  • T:  3/4-16 UNF
  • D:  1.50 in.
  • H:  0.90 in.
  • H1: 0.30 in.
  • R:  6.00 in.
  • W: 1.25 in.
