iLoad Mini Stud Capacitive Load Cell: Build and Buy



The iLoad Mini Digital USB load cell is a miniature version of the iLoad Series patent protected capacitive load cell technology. Since the load cell is just 1.25" in diameter and only about 0.4 inches high for the dome version, we separated out the signal conditioning from the sensor. The sensor itself outputs a frequency output. You can mate it with a single channel DQ-1000 or DQ-4000 four channel interface and connect via UART/USB and start measuring! An optional analog output is also available to connect with PLCs. Just connect load cell to the Interface and start measuring using LoadVUE, SensorVUE, or ControlVUE loadcell software. Or display force, load, or weight on our touch-screen load cell displays.

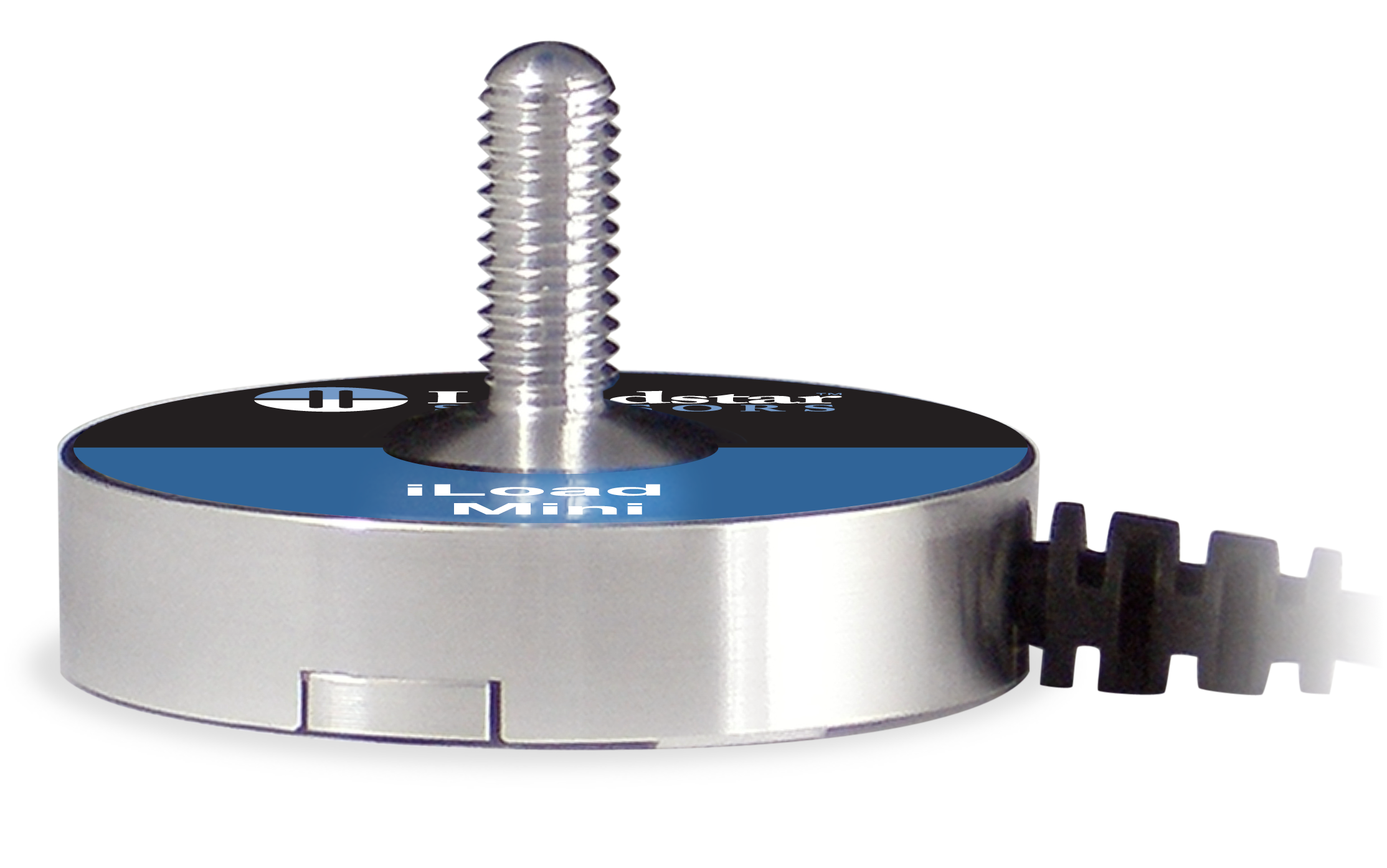

 iLoad Mini Stud Capacitive Load Cell



instructions to build your order product builder capacitive



NOTE: Capacitive Load Cells come Pre-Calibrated and are Ready-to-Use.

iLoad Mini Miniature Stud USB Load Cell Compression Mode

$

iLoad Mini Miniature Stud USB Load Cell Tension Mode

$

iLoad Mini Miniature Stud USB Load Cell Universal Mode

$

Capacitive Interface

You MUST pick an Interface to pair and calibrate with the iLoad Mini load cell.

$

Software

$

Electronic Accessories

$

Mechanical Accessories

$

Display

Use the DS-3000-Pro touch screen display with any USB load cell kit, i.e. load cell + interface. The load cell and interface pair must be calibrated before it is connected to the display. Use DS-3000-Pro-1 with single load cell kit and DS-3000-Pro-4 with up to 4 load cell kits. This display does not work with analog kits that use AI-1000 or AI-1000-CV.

$

Expedited Processing

Our normal processing for orders received with payment or with POs for those with established accounts is about two weeks. For faster processing select one of the options shown below. This expedited processing is on a best efforts basis.

$
Discount:  $
Total Price:  $
