MX-600-B2A: 6 ft MiniB to USBA Cable
Loadstar Sensors' products use a variety of cables to provide connectivity between the sensors and interfaces and a PC. Some cables have mini-B connectors on both ends and others have a mini-B on one end and a USBA connector on the other end.
Please look at the compatibility of products before using the correct type of cable for your application.
| SKU (Model) | Image | Compatible Products |
S2U Dongle |
Comments |
|

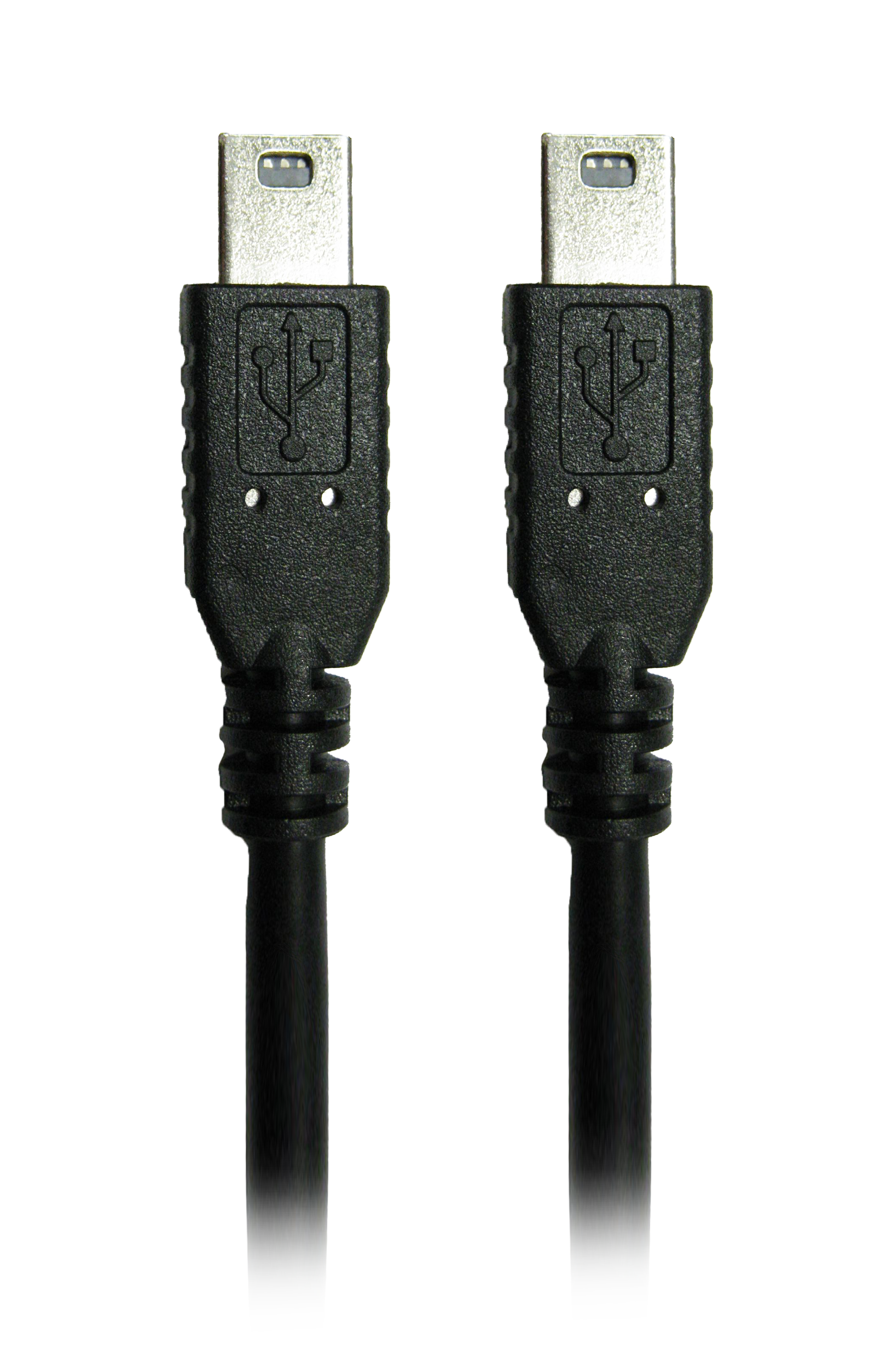

MX-600-B2B
|
 |
DQ-1000 DI-100 iLoad
|
Yes |
The output signal is UART/Serial TTL up to the Mini-B connector. The FTDI dongle converts UART into USB. You must use our S2U USB dongle for the output to function properly.
|
|

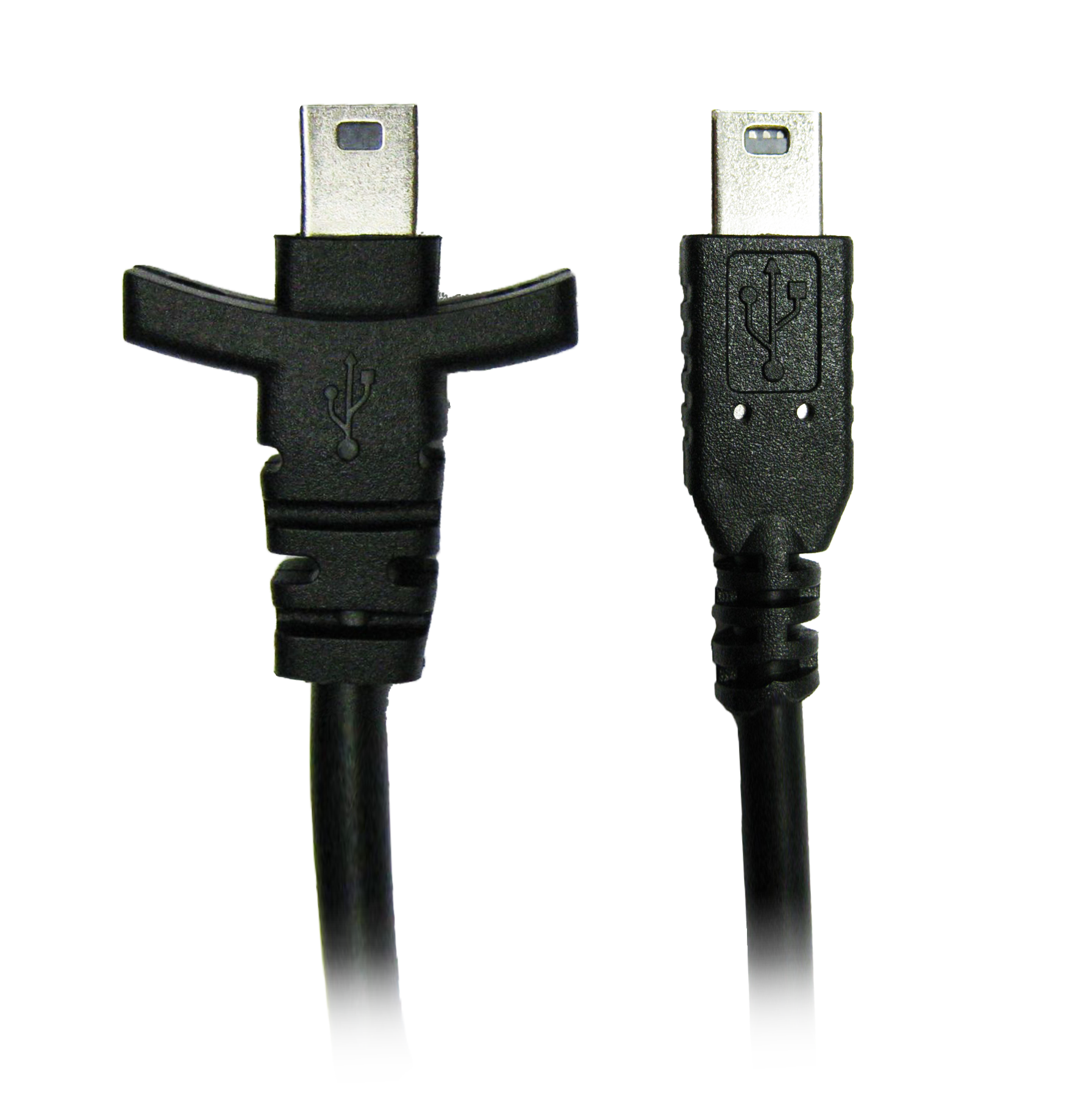

MX-1000-B2B-Pro (10 ft) |
 |
iLoad Pro iLoad TR |
Yes |
The output signal is UART/Serial TTL up to the Mini-B connector. The FTDI dongle converts UART into USB. You must use our S2U USB dongle for the output to function properly.
|

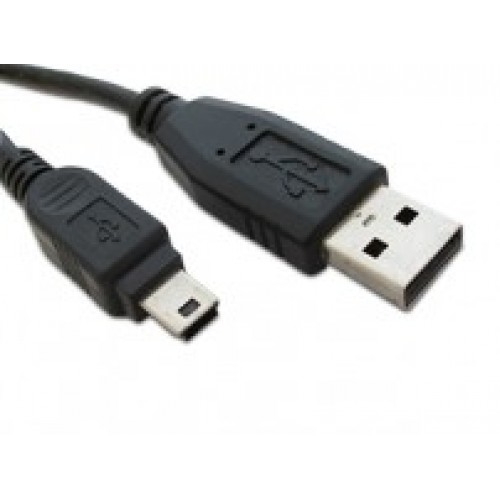

| MX-600-B2A |  |
DI-1000 | No | The DI-1000 has the USB protocols built in to it. Hence you can use any std. mini-B to USBA cable with the DI-1000 to get USB connectivity om a PC. |
