iDisp High Resolution Displacement Sensors: 60.96 mm (2.5 inch)

Highlights

High repeatability & high accuracy solution
+/- 1.5 micron accuracy
Spring Loaded probe tip
LCD Display Screen
Accuracies up to 0.0015 mm
Displacement sensors available in 30 mm and 60 mm configurations.
USB output included in sensor

iDisp Displacement Sensor

The iDisp displacement sensor solution is high accuracy digital linear sensor made from linear encoders. Once can get resolutions of +/- 0.00015 mm from these digital gauges.

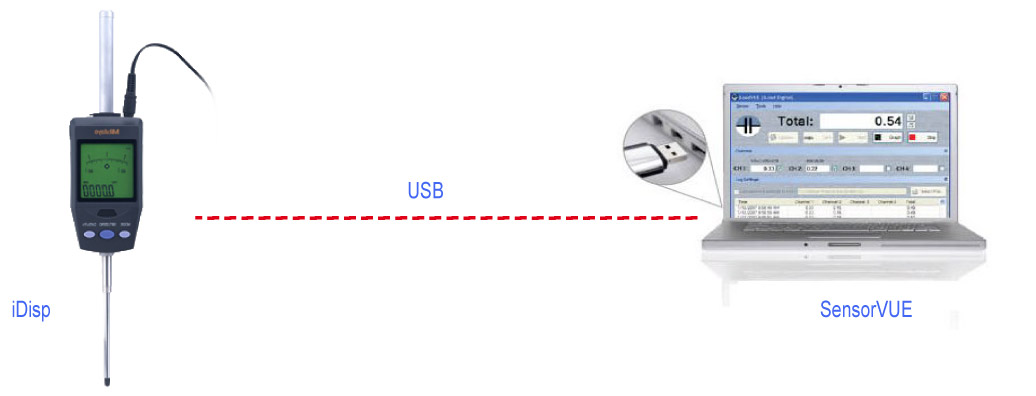

They have a spring-loaded probe tip and a built in LCD screen to display the measured values. A data port on the unit allows one to get data via a USB (serial) connection into our SensorVUE program on a PC to display, log and plot the displacement values easily.

USB Configuration

Our high resolution displacement sensor kit with USB Output includes:

One iDisp High Resolution Displacement Sensor
Cables for USB data acquisition
SensorVUE multi-channel software

SensorVUE Software

Our SensorVUE software allows you to mix and match different kinds of sensors and display, log and plot all of them within a single interface. It can handle force and displacement sensors simultaneously as shown below. It can not only show multiple force sensors and one displacement sensors as a Value vs. Time plot, but in additional it can also plot Force vs. Displacement plots and allow a user to characterize material properties! This allows you to create a simple, inexpensive self made universal testing machine at a much lower cost than what one can purchase it for in the market.
