Specifications
|
Hardware Requirements
- Windows compatible PC
- 10 MB disk space
- 256 MB memory
OS Requirements
- Microsoft Windows XP
- Vista compatibility is coming soon
Interface Requirements
- DS-2100 Four Channel Display
- DQ-1200 Four Channel Interface
- iLoad Digital series Load
Sensors
|
Download LoadVUE/LoadVUE Lite Spec Sheet
|
|

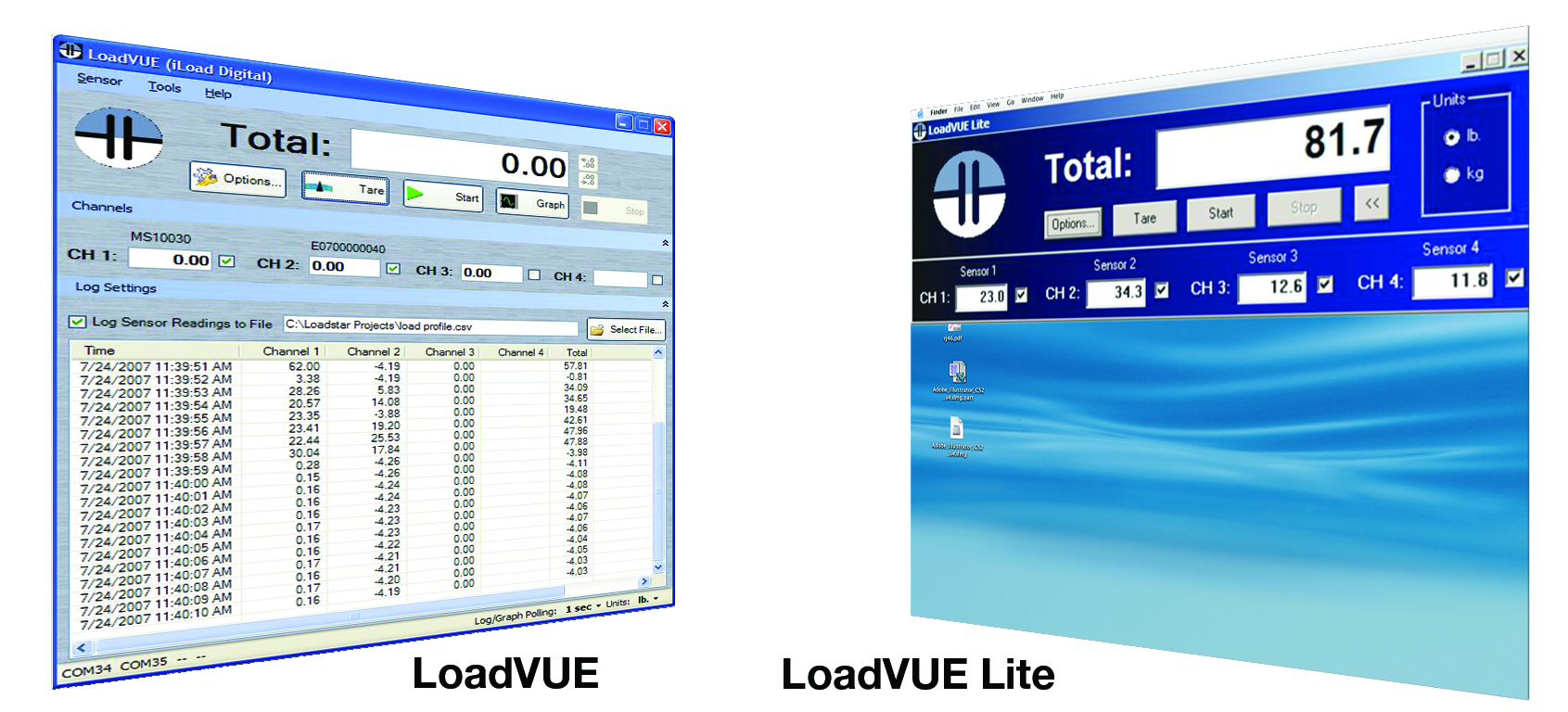

LoadVUE is Loadstar Sensors' software application that enables a user to read data from one to four iLoad series capacitive load sensors. The program permits you to perform nine-point calibration on attached sensors, curve-fit data from the sensors, display
individual loads plus the sum of all loads, and log data on screen and to a file.
LoadVUE Lite provides Plug and Sense simplicity using the iLoad series' built in
calibration to read and display data from one to four load sensors.
| Feature |
LoadVUE |
LoadVUE Lite |
| Compatible with iLoad Analog sensors |
Yes* |
Yes* |
| Compatible with iLoad Digital USB sensors |
Yes |
Yes |
| Maximum of 4 sensors |
Yes |
Yes |
| Selective channel activation |
Yes |
Yes |
| Selectable units |
Yes |
Yes |
| Data Logging |
Yes |
No |
| 9-Point Calibration |
Yes |
No |
| Selectable display refresh rate |
Yes |
No |
* Needs an interface device such as DQ-1200 or DS-2100.
|
