Specifications
|
Operating Temperature Range
- 0 to +70°C, non-condensing
Temperature Effect
Data Output Speed
- 3 readings/second for all
four channels
Size
- 7.5-in long x 4-in wide x 1.5-in high
Input Connectors
Power Required
- +7.5V - 12V DC at 500
mA
max. (at 25°C)
- 9V battery for backup
Power Plug
- 2.1 mm female, center pin is power, shell is ground.
Available Interfaces
- DS-2100 : RS-232
- DS-2100 USB : USB 2.0
- DS-2100 BT : Bluetooth
|
Download DS-2100 Spec Sheet
Download DS-2100 eDrawing
|
|

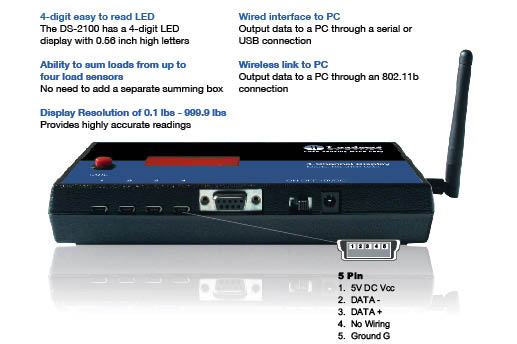

The Loadstar DS-2100 Display provides a method of measuring loads on one to four Loadstar iLoad Analog Series load cells. The LED display can be used to view the sum of loads on the connected load cells. Uncalibrated raw data is also available for output to a PC. The DS-2100 when combined with four Loadstar iLoad series load cells is an accurate data acquisition system for measuring loads and forces.
The display converts analog output voltage from the load cells into a digital signal
using 21 bit A/D chips. It provides a display resolution of 0.1 lbs up to 999.9 lbs maximum. The display provides a convenient push button to enable users to take a tare (or set the zero load value) before taking a reading.
The display provides a half-inch tall, 4-digit LED visual display for stand-alone
measurement, as well as a wired (RS-232 or USB2.0) and wireless (Bluetooth) signal for output to a PC. The 4-digit bright red LED digital readout provides .56-inch-tall digits for easy reading.
The optional LoadVUE or LoadVUE Lite software from Loadstar Sensors provides a
convenient Windows-compatible software application for easy display, upload, and
calibration functions on a PC.
|
