Specifications
Operating Temperature Range
- 0 to +70°C, non-condensing
Temperature Effect
Data Output Speed
- Up to 300 raw readings per
second per channel
- Up to 150 calibrated readings
per second per channel
Size
- 7.5-in long x 4-in wide x 1.5-in high

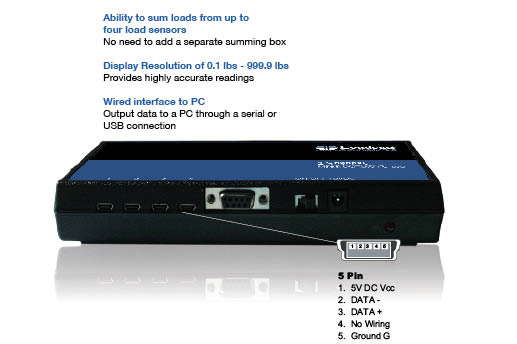

Input Connectors
Power Required
- +7.5V - 12V DC at 100 mA
max. (at 25°C)
- 9V battery for backup
Power Plug
- 2.1 mm female, center pin is
power, shell is ground.
Interface Devices
- DQ-1200 : RS-232
- DQ-1200 USB : USB 2.0
|
Download DQ-1200 Spec Sheet
Download DQ-1200 eDrawing
|
|
The Loadstar DQ-1200 when combined with four Loadstar iLoad Analog Series load cells is a fast data acquisition system for measuring loads and forces. The
DQ-1200 provides a serial (RS-232) or USB 2.0 signal for output to a PC.
The DQ-1200 converts analog output voltage from the iLoad Analog Series load cells into a digital signal using 12 bit A/D chips.
Users can obtain readings by issuing simple ASCII commands to a serial COM port.
This can be done via standard Windows applications such as HyperTerminal. Typical

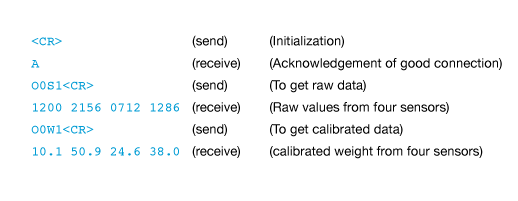

commands to obtain readings would look like:
The optional LoadVUE or LoadVue Lite software from Loadstar Sensors provides a
convenient Windows-compatible software application for easy display, upload,
and calibration functions on a PC.
|
